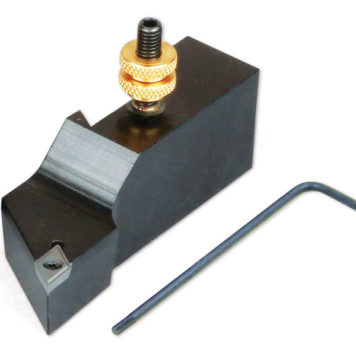

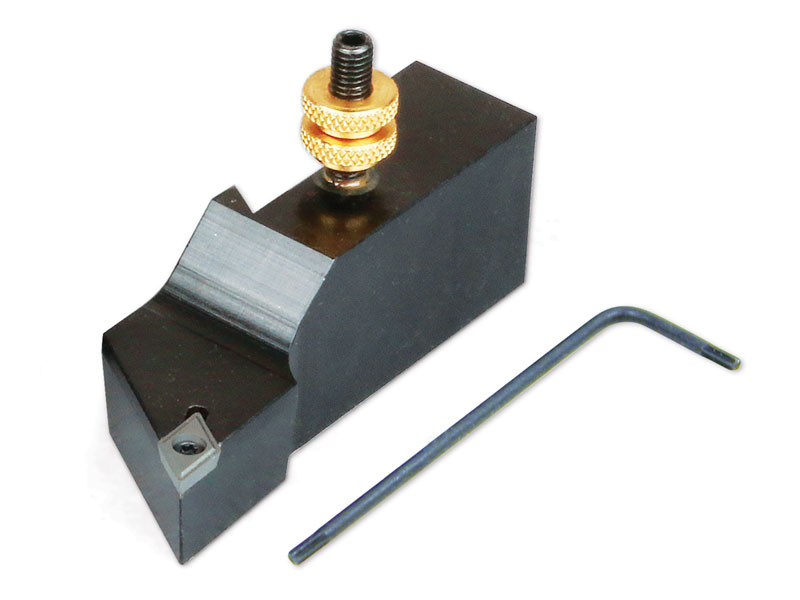

Sherline Quick Change Carbide Insert Holder Body 22550

$80.08

Sherline Quick Change Carbide Insert Holder Body 22550

Description

Sherline Quick Change Carbide Insert Holder Body 22550

Sherline Quick Change Carbide Insert Holder Body 22550

This is a replacement part.

Sherline now manufactures its own inserted tip carbide tool holders. They are available individually as a right-hand holder (P/N 2256) or a left-hand holder (P/N 2257).

The pair of RH and LH is P/N 2258. Each comes with a P/N 7605 55° carbide insert.

The 3/8″ square shank holds the P/N 7600 tool post. The 35° offset angle of the tip makes it easier to accomplish certain cuts.

For example, when you use the tool holder square with the crosslide, you can turn an O.D. up to a shoulder and then finish the shoulder to maintain the proper tool clearance.

The tip of the cutting tool is .375″ from the bottom of the holder.

The holders are made from case hardened steel with a black oxide finish.

Though relatively expensive, if a cutting edge becomes dull or chipped, you can insert and rotate 180° to expose two new cutting surfaces, providing, in effect, two tools for the price of one.

The primary method of cutting metal on miniature machine tools is usually with high speed steel tools.

You can easily make them sharp and you can “form” tools for special jobs. However, inserted tip carbide tools are lifesavers for some jobs.

Carbide tools hold their cutting edge when cutting exotic metals or abrasive materials and can speed up the cutting process.

This is why they are useful for most cutting tasks in the modern professional machine shop.

Replacement carbide tips are available as P/N 7605. (See “Cutting Tools” section to order replacement carbide tips.)

NOTE: A tools name is by the direction from which the chip leaves the tool.

PICTURE IS FOR REFERENCE ONLY, ONLY 1 HOLDER PER ORDER

Additional information

Weight 1 lbs
Dimensions 10 × 6 × 3 in
