17 Inch Lathe B Package 4400B-CNC Ready

If you have an interest in a lathe with more distance between centers, the model 4400 (metric 4410) lathe is available. Several upgrades are included in the purchase price. Standard equipment is the same as on the model 4000; that is, 90 VDC motor with electronic speed controller, a 2.75″ (70mm) x 6.0″ (152mm) crosslide, pulleys, belt, faceplate, lathe dog, two dead centers, three hexagonal keys, sharpened high-speed steel cutting tool, eight-foot, three-wire power cord and instruction booklet.

In addition, the model 4400 lathe has a 24″ (610mm) bed that has 17″ (431mm) between centers, a 2.5″ (63mm) resettable “zero” handwheel on the leadscrew, two 2″ (51mm) resettable “zero” handwheels on the crosslide and feed screw and a rocker tool post (P/N 3057) substituted for the standard tool post used on the shortbed lathes.

The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed. Many machinists find that the extra space between centers comes in handy when working with a part held in a chuck and a larger tailstock chuck with a long drill bit in place. The combination of chucks, part and drill can eat up a lot of the available center-to-center distance, and a little extra capacity is often necessary. This lathe offers the same diameter turning capacities as the shorter lathe and the same powerful motor/speed control. The differences are both the extra 9” of center distance and the addition of extras like the adjustable zero handwheels and rocker toolpost, making this lathe a good value for the extra cost.

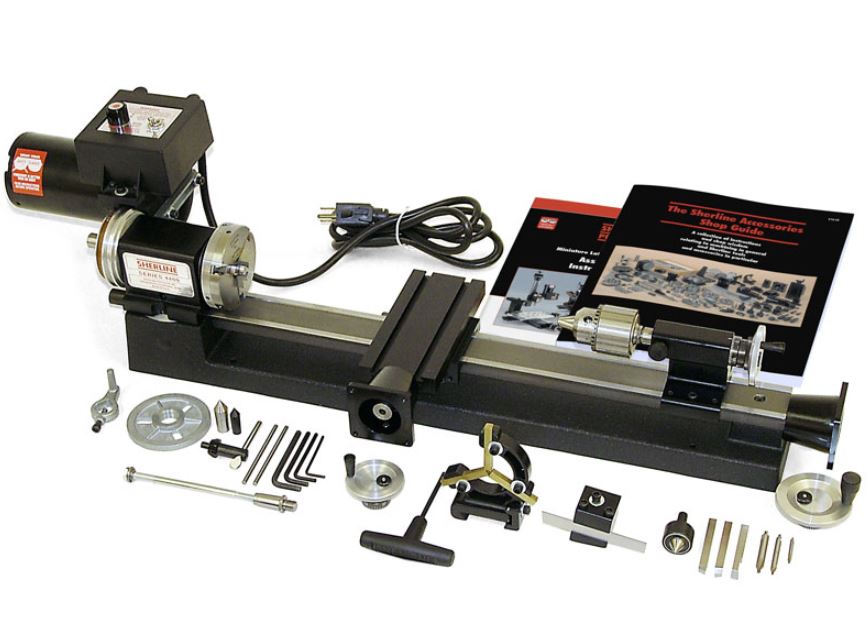

4400B-CNC Ready Package Includes:

  • Everything in the “B” Package PLUS CNC Motor Mounts:
  • 3.1″ 3-jaw Chuck
  • 3/8″ Tailstock Chuck
  • 1074 Steady rest
  • 1191 Live Center
  • 3002 Cutoff Tool and Holder
  • 3007 3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)
  • 3020 5/32″ T-driver
  • 3021 3-pc Center Drill Set
  • 5327 Sherline Accessories Shop Guide Book
  • CNC Stepper Motor Mounts Installed

Note that CNC-ready machines cannot operate manually until you install the stepper motors


Additional information

Weight 34 lbs
Dimensions 36 × 18 × 12 in
