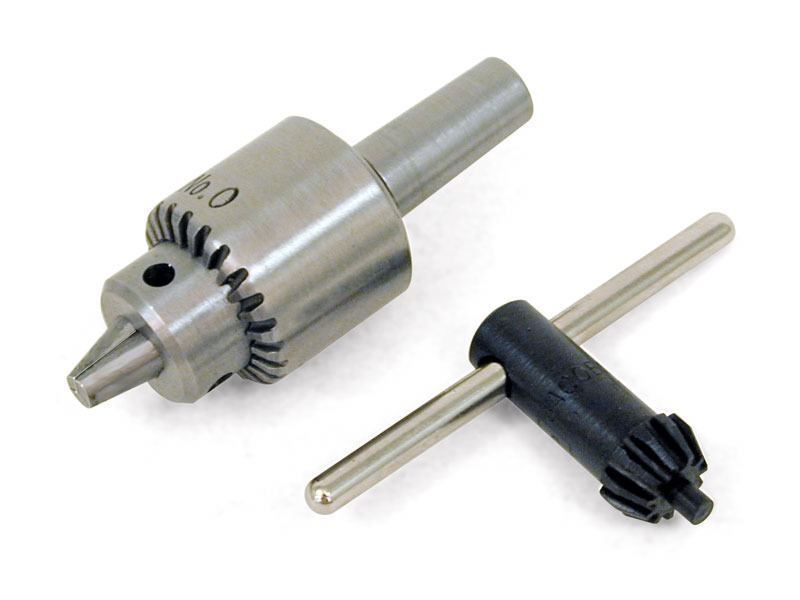

Sherline 1015 – 5/32 Inch Drill Chuck with #0 Morse Arbor

$76.44

Sherline 1015 – 5/32 Inch Drill Chuck with #0 Morse Arbor

Description

Sherline 1015 – 5/32 Inch Drill Chuck with #0 Morse Arbor

***The P/N 1015 Chuck is identical in capacity to the 1010 chuck shown except that a #0 Morse arbor has been pressed into the Jacobs taper in the back of the chuck. It is used in the tailstock and does not require a drawbolt***

We supply a #0 Morse arbor for use in the tailstock for center drilling. The chucks are also available with a #1 Morse arbor and drawbolt for use in the headstock for drilling on the lathe or mill. They are available in 5/32″, 1/4″ and 3/8″ sizes. Runout is .003″ or less. If runout of less than this amount is required, collets should be used to hole the drill rather than a chuck.The P/N 1015 Chuck is identical in capacity to the 1010 chuck. It is used in the tailstock and does not require a drawbolt.

NOTE: Because the arbor is pressed into the chuck, it is not interchangeable from chuck to chuck. A separate chuck must be purchased for #0 and #1 Morse use

Additional information

Weight 3 lbs
