Sherline 3/8 Inch Drill Chuck with Straight Shaft Arbor 5938

$85.57

Sherline 3/8 Inch Drill Chuck with Straight Shaft Arbor 5938

SKU: sher-5938 Category: Tag:

Description

Sherline 3/8 Inch Drill Chuck with Straight Shaft Arbor 5938

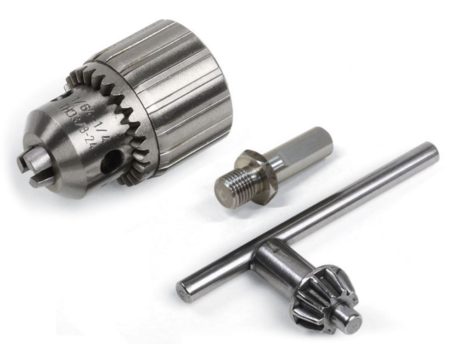

3/8 Inch Drill Chuck with Straight Shaft Arbor

This chuck comes with a straight shaft arbor designed to fit in our multi-tool holders with 3/8″ mounting holes*. The straight shaft arbor will also work with our 3/8″ insert holder tool post (P/N 7600). It has a 3/8″ diameter straight shaft with a machined flat for holding in the posts. Ensure the flat surface on the arbor is oriented toward the top of the tool post, so the 10-32 x 3/4″ SHC screw will be perpendicular to the flat. This orientation will assure that the arbor does not turn or move when force is exerted on the tool.

Specifications

  • Chuck Capacity: 3/32″ (2.4 mm) – 3/8″ (9.5 mm)
  • Arbor: Straight shaft for 3/8″ tool holders
  • Includes chuck key

Additional information

Weight 1 lbs
Dimensions 4 × 2 × 6 in
