Sherline 3/8 Inch Rear Side Multi-Tool Holder 5941

$70.72

Sherline 3/8 Inch Rear Side Multi-Tool Holder 5941

Description

Sherline 3/8 Inch Rear Side Multi-Tool Holder 5941

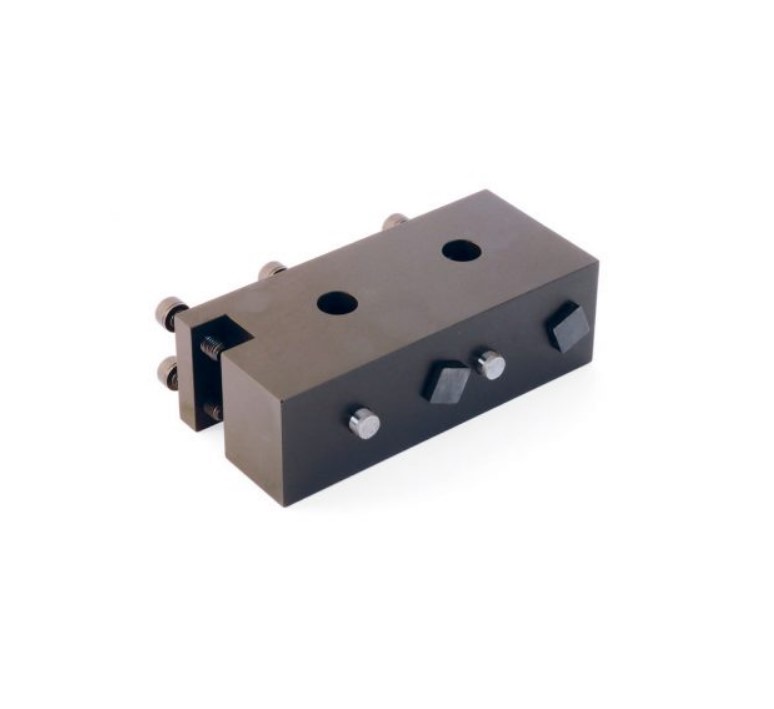

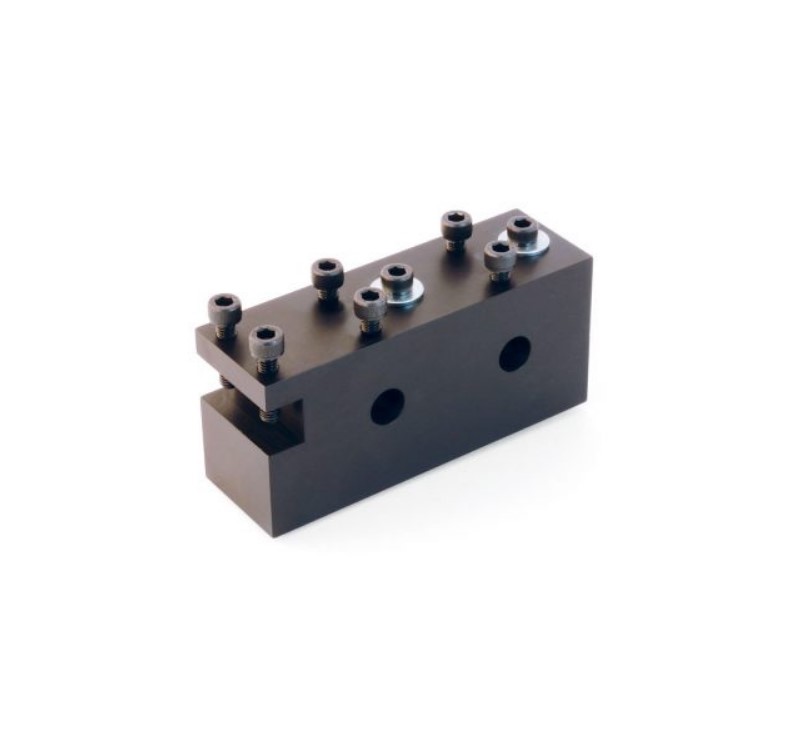

3/8 Inch Rear Side Multi-Tool Holder

The rear side, multi-tool holder was designed to complement our four position, gang-tooling tool posts. It can be used in conjunction with the gang-tooling tool post, or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

The rear-mount tool holder is slightly taller than its front side counterpart, P/N 5932, allowing the tool to be mounted upside down and used on the backside of the crosslide. The round holes are for holding boring tools on center (tool not included) like Sherline’s own right- and left-hand 55° inserted tip tool holders.

Our rear side, multi-tool holder offers a convenient and accurate way to hold up to two, round boring tools with a known center-line-to-center-line distance of 1.500″, and a slot to hold 3/8″ square carbide tool holders on the “back” side of the part for turning, grooving, or threading tools.

We also offer a rear side, multi-tool holder for customers who want to use ER16 collet holders with a 5/8″ shank.

Includes the following:

  • 3/8″ Rear Side, Multi-Tool Post Body
  • 10-32 x 1″ SHCS (2)
  • Extended Tool-Post T-Nut (2)
  • 10-32 x 3/4″ SHCS (6)
  • #10 Washer (2)
  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Considerations Regarding This Tool Holder and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document).

Insert Holder Tool Post Specs

Tool Post Body Material: Aluminum
Body Coating: Black Anodized
Body Dimensions (H x W X D):  1.7″ x 3.764″ x 1.1875″
Tool Holes: 1.5″ between centers

Additional information

Weight 1 lbs
Dimensions 4 × 5 × 3 in
