Sherline Single Flute Insert Fly Cutter 7620

$65.52

Sherline 7620 – Single Flute Inserted Tip Fly Cutter

Description

Sherline Single Flute Insert Fly Cutter 7620

Sherline Single Flute Insert Fly Cutter 7620

This fly cutter offers several advantages over the standard high-speed steel fly cutter. Inserted carbide tips will last much longer without sharpening. They provide an excellent finish on hard-to-machine materials like cold-rolled and stainless steel. The cutter path is 1-1/8″ (28.6mm) wide. The cutter shape allows it to cut a straight shoulder on a part… something that cannot be done with the standard fly cutter. Once you use this tool, you will understand why 80% or more of the metal removed in modern machine shops is removed with carbide insert tools.

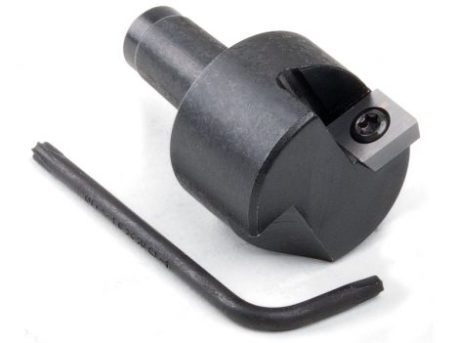

This cutter has a #1 Morse tapered shaft and is held in the 3/4 x 16 headstock spindle with a drawbolt. The cutter comes with one 2-edged carbide insert, a Torx attachment screw, a drawbolt and washer, plus a T-15 Torx wrench. Additional inserts are available through Sherline as P/N 7622.



Additional information

Weight 2 lbs
