Sherline 5/8 Inch Gang-Tooling Tool Post 5935
5/8 Inch Gang-Tooling Tool Post
Sherline designed a gang-tooling tool post specifically for their customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

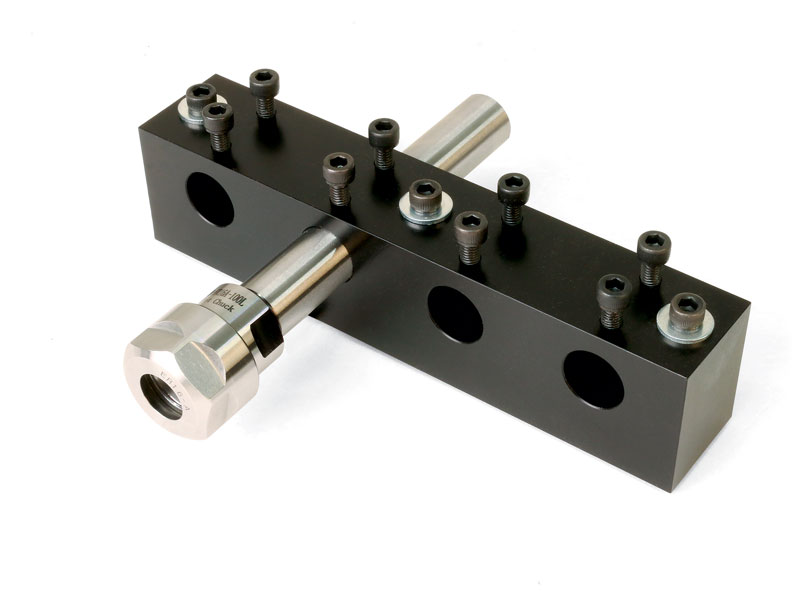

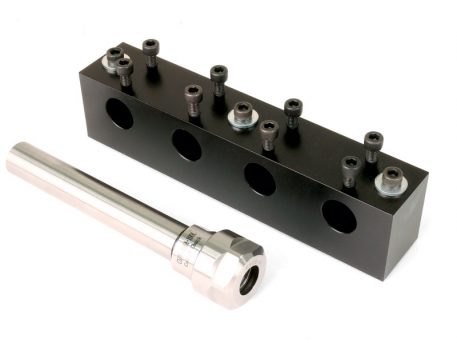

This gang-tooling tool post offers a convenient and accurate way to hold up to four tools with a known centerline-to-centerline distance of 1.500″. This tool post has (4) 5/8″ holes for customers who want to use ER16 collet holders with a 5/8″ shank.
Includes the following:
- 5/8″ Gang-Tool Post Body
- 10-32 x 7/8″ SHC Screw (3)
- Extended Tool-Post T-Nut (3)
- 10-32 x 5/8″ SHC Screw (8)
- #10 Washer (3)
- Steel Dowel Pin 1/4″ x 3/4″ (2)
Specifications for the Gang-Tool:
Tool Post Body Material: Aluminum
Body Coating: Black Anodized
Body Dimensions (H x W X D): 1.4375″ x 6.25″ x 1.1875″
Tool Holes: 1.5″ between centers
Considerations Regarding This Tool Post and Its Possible End Uses
There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list. This tool post is for use with Sherline’s 13″ Mill Table. See (P/N 50180 or P/N 67050), in place of the crosslide. Other recommended optional equipment includes P/N 1294 Riser Plate in order for your tools to be on centerline with the headstock spindle.
While the gang-tooling tool post will mount on the 6″ and 8″ crosslides, its size renders it unusable on either of these crosslides.
