Sherline Front Side Multi-Tool Holder 5/8 Inch 5937

$78.00

Sherline Front Side Multi-Tool Holder 5/8 Inch 5937

Description

Sherline Front Side Multi-Tool Holder 5/8 Inch 5937

Sherline Front Side Multi-Tool Holder 5/8 Inch

(ONLY HOLDER IS INCLUDED, tools not included, shown for reference only)

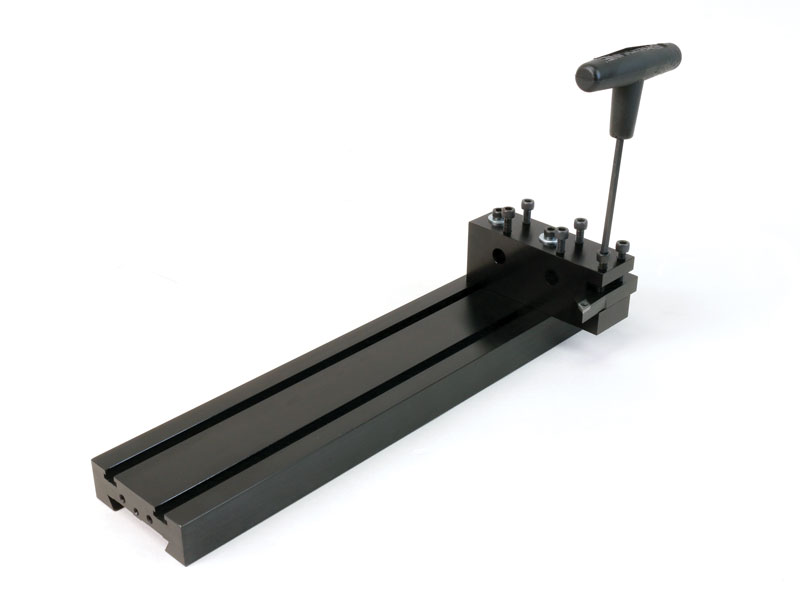

The front side, multi-tool holder is designed to complement our four position, gang-tooling tool posts (P/N 5930 or P/N 5935). Use in conjunction with the gang-tooling tool post, or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

Our front side, multi-tool holder offers a convenient and accurate way to hold up to two, round boring tools, and a slot for holding turning, grooving or threading tools. This tool post has (2) 5/8″ holes to hold boring bars, drill chucks, or tool bushings, and a slot to hold a 5/8″ lathe cutting tool with two locking screws for each tool.

Includes the following:

  • 5/8″ Front Side Multi-Tool Post Body
  • 10-32 x 1″ SHC Screw (2)
  • Extended Tool-Post T-Nut (2)
  • 10-32 x 3/4″ SHC Screw (6)
  • #10 Washer (2)
  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Specifications:

Tool Post Body Material – Aluminum
Body Coating – Black Anodized
Body Dimensions (H x W X D) – 1.7″ x 3.764″ x 1.1875″

Considerations Regarding This Tool Post and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions above to download the document). This tool post is for use with our 13″ Mill Table (P/N 50180 or P/N 67050) in place of the crosslide. Other recommended optional equipment includes P/N 1294 Riser Plate in order for your tools to be on centerline with the headstock spindle.

While the gang-tooling tool post mounts on the 6″ and 8″ crosslides, its size renders it unusable on either of these crosslides.

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
