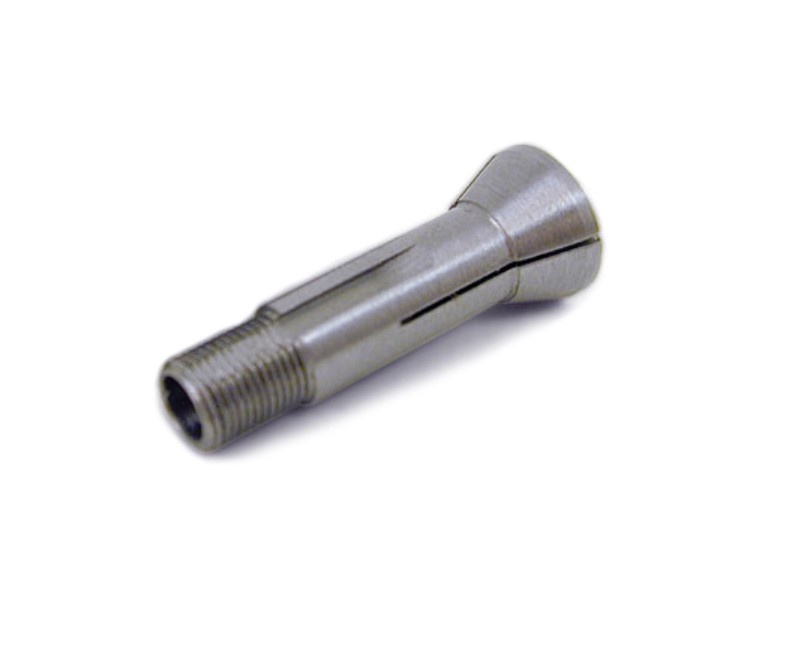

Sherline WW Collet 5.0mm (.197 Inches) 117850

$22.65

Sherline WW Collet 5.0mm (.197 Inches) 117850

SKU: Sherline-117850 Category: Tags: ,

Description

Sherline WW Collet 5.0mm (.197 Inches) 117850

WW Collet 5.0mm (ONE Collet)

Collets provide a quick, easy method of mounting cylindrical parts or bar stock in the lathe with a great deal of centering accuracy. Each collet is actually a small, precision 3-jaw chuck that fits into a special tapered adapter in the headstock. A drawbar passes through the headstock and threads into the back side of the collet. It will draw the collet up into the tapered adapter. The jaws of the collet close down, gripping the part.

Typically, collets provide a very accurate part mounting system, but each size collet can accommodate only a small range of diameters of approximately ±.001″ (.02mm).

WW Collets

WW collets differ from milling collets (P/N 3060) in that they have a hole all the way through the collet and drawbar. The maximum diameter stock that can pass entirely through the collet is 3/16″ or 4.5mm, although collets are available up to 5/16 and 8.0 mm. WW collets that are larger than the through-hole diameter are also “pot” chucks.

Inch collets all begin with part number 1160 followed by two digits which indicate the size in 64ths of an inch. For example, P/N 116004 is 4/64″ (1/32″).

Other Collets

These collets are not hardened. They are manufactured by Sherline and are built to standard WW specifications; however, we have come across collets that are called “WW” but will not fit our drawbar and adapter. Sherline collets have a shank diameter of .312-.313 and a .275-40 thread. Be sure to check WW collets made by other manufacturers. Make sure they fit our adapter before you purchase them. Sherline manufactures a slightly larger .315″ adapter and drawbar set (P/N 1163). These will accommodate some of the other brands of 8 mm collets.

Sherline WW collets are available in inch sizes by 64ths of an inch from 1/64″ to 5/16″.

Additional information

Weight 0.5 lbs
Dimensions 2 × 1 × 1 in
