Sherline Deluxe WW Collet Set 1162


Sherline Deluxe WW Collet Set 1162

SKU: sher-1162 Category: Tag:


Sherline Deluxe WW Collet Set 1162

Deluxe WW Collet Set

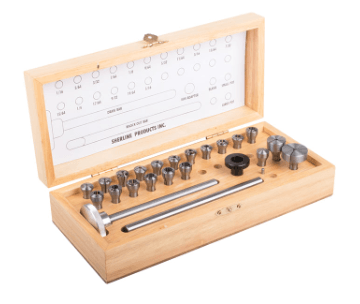

These sets contain a complete selection of 17 Sherline WW collets, including a blank, 3/4″ and 1″ pot chucks with dowel pin, an adapter, drawbar and a knockout bar. It is packaged in a high quality wood box constructed with finger joint corners that has a brass latch and hinges. A machined wood insert locates each part, plus a drawing in the lid reminds you where each part goes to keep things organized. Extra holes are provided should you want to add additional collets to suit your particular needs. This is a handsome and useful package for the serious miniature machinist.

Each set contains: WW collet adapter, drawbar, knockout bar, blank WW collet, 3/4″ collet pot chuck, 1″ collet pot chuck and 1/8: clamping pin.

The inch set includes the following 17 collet sizes: 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″, 5/32″, 11/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″, 17/64″, 9/32″, 19/64″, 5/16″.

*NOTE: The Sherline WW collet adapter does not have a keyway pin for the collets. Sherline customers have been using these WW collets on Sherline lathes without a key pin for over forty years without any problems.


Additional information

Weight 6 lbs
Dimensions 14 × 6 × 5 in
