Sherline 2269 Wide Grooving Insert for P/N 2267

$26.26

Sherline 2269 – Wide Grooving Insert for P/N 2267

Description

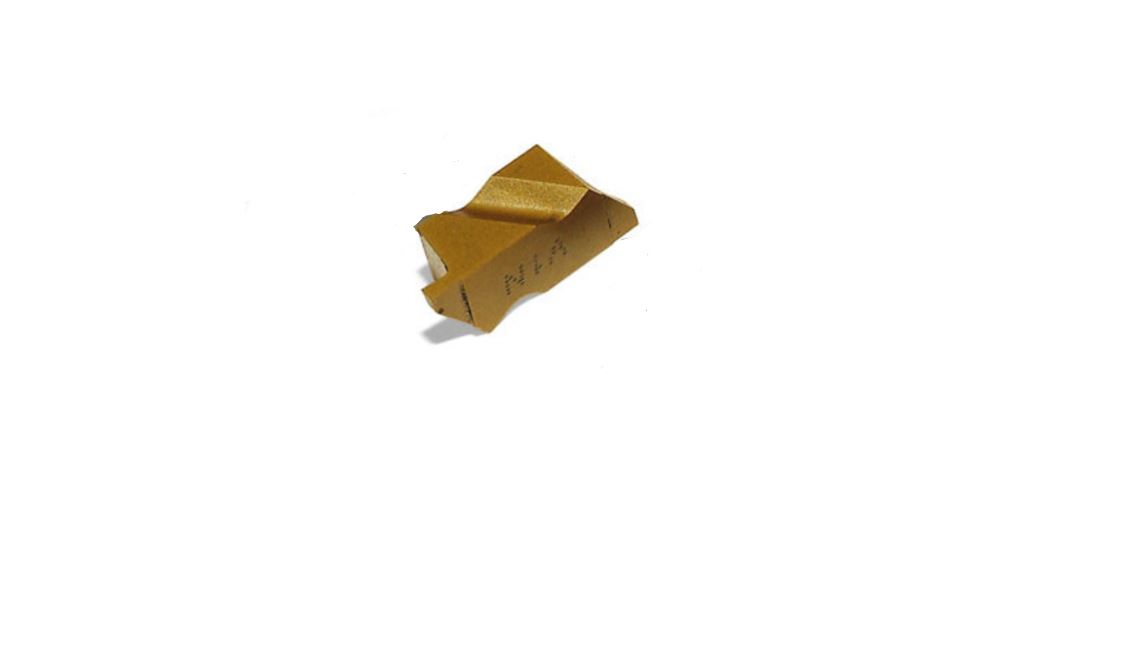

Sherline 2269 Wide Grooving Insert for P/N 2267

Wide Grooving Insert for P/N 2267 Insert Tool Holder

These carbide inserts are used in the P/N 2267 Insert Tool Holder and can do a couple of tasks. When cutting grooves, you can use P/N 2269 to cut a .031″ wide groove.031″ wide grooving insert for P/N 2267.

P/N 2269 – .031 Grooving insert
Insert Size: 2
W – MM: 0.79
W – IN: .031
W TOL ± – MM: 0.03
W TOL ± – IN: .001
RR – MM: 0.09
RR – IN: .0035
T – MM: 1.27
T – IN: .050
Grade: KC5025

Additional information

Weight 0.50 lbs
Dimensions 2 × 2 × 2 in
