Sherline 3013 Step Block Hold-down Set

$64.57

Sherline 3013 – Step Block Hold-down Set

SKU: sher-3013 Category:

Description

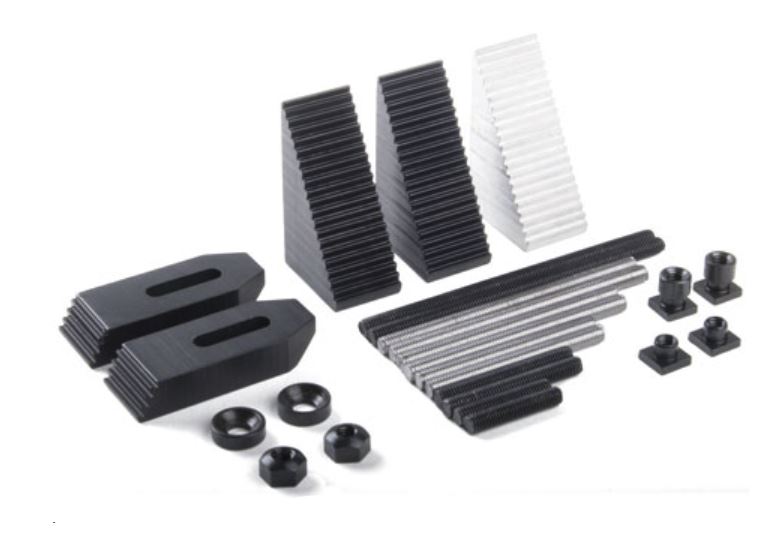

Sherline 3013 Step Block Hold-down Set

This set is an upgraded version of the P/N 3012 hold-down set that is both easier to use and holds a larger range of part sizes. This style clamp set has long been popular on full-size milling machines, and we now produce a nice set suitable for miniature machine tools. The step blocks are notched as are the back of the clamps to make it quick and easy to set your clamps to the proper height. A selection of threaded studs from 1″ to 3-1/2″ is provided
to allow a variety of heights to be selected quickly.

The nut and washer design is a nice touch too. The bottom of the nut is convex while the top of the washer has a matching concave surface. Even if the clamp isn’t level, the washer will seat flat on top of it while applying even pressure. Also provided is a spare, unanodized step block that you can cut down to make smaller size step blocks for low setups. At least one set of hold-down clamps should be considered a necessity for every milling machine owner. Maximum height of part that can be clamped with the screws provided is about 3″ (76 mm).

Sherline also offers an economical basic hold-down set. See P/N 3012

Additional information

Weight 1 lbs
